Glazing units for skylights

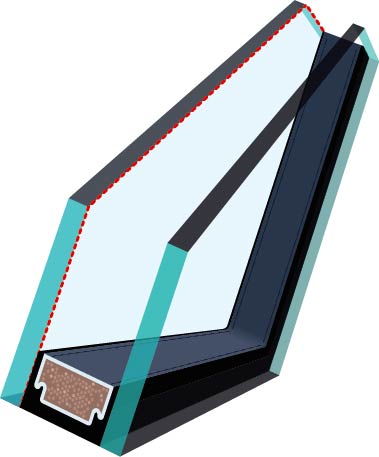

• Single chamber "Solar Factor" glazing unit  4HT – Tg16Ar – 4H
• Sunscreen external pane toughened, 0.16" thick
• Internal pane toughened, 0.16" thick
• Warm TGI spacer
• R-value 5.7 (glass)
• Glazing cavity filled with inert gas – Argon
• Models applicable to: FX, FV, FVE

• Single chamber "Solar Factor" glazing unit 4HT– Tg14Ar – 33.2
• Sunscreen external pane toughened, 0.16" thick
• Internal pane laminated 33.2 PVB (0.25") – P2A class as per EN 356, 1(B)1 as per EN 12600
• Warm TGI spacer
• R-value 5.2 (glass)
• Glazing cavity filled with inert gas – Argon
• Models applicable to: FX, FV, FVE

• Single chamber ”Solar Factor” glazing unit, 4HT – Tg16Ar – 4H, blackening at the edge of the glazing unit (1.2") colour RAL 9005
• Sunscreen external pane toughened, 0.16" thick
• Internal pane toughened, 0.16" thick
• Warm TGI spacer
• R-value 5.7 (glass)
• Glazing cavity filled with inert gas – Argon
• Model applicable to: FXC

Glazing unit G33 – Solar Factor, laminated

• Single chamber "Solar Factor" glazing unit, 4HT– Tg14Ar – 33.2, blackening at the edge of the glazing unit (1.2") colour RAL 9005
• Sunscreen external pane toughened, 0.16" thick
• Internal pane laminated 33.2 PVB (0.25") – P2A class as per EN 356, 1(B)1 as per EN 12600
• Warm TGI spacer
• R-value 5.2 (glass)
• Glazing cavity filled with inert gas – Argon
• Model applicable to: FXC
