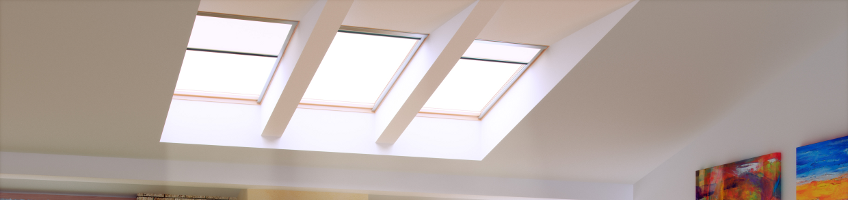

Deck Mounted Fixed Skylight FX

The beauty of Fakro FX skylights is our features and benefits differentiates us to other competitors, our skylights are ideal for homes with high ceilings. Our high-end quality FX skylights separate us from the pack without the high-end price tag.

Fakro’s unique designs accommodates all designed homes, our practical and easy installation system allows for even a DIY installation. Our newly designed “warm” frame and Low –E, single chamber glazing provide an Energy Star® efficiency for residential skylights.

A great feature of Fakro is that they allow for a handy man to perform a relative quick and easy installation, whilst providing a leak-proof limited Warranty.

Features:

Ideal for roof pitches of 15 degrees and 85 degrees
External frame coated with UV and weather resistant polyester paint for longevity
Internally, coated with water based clear acrylic lacquer (no extra painting required).
Constructed from pressure treated Nordic pine timber
Low heat transmittance. Meaning less heat loss in those cold winter months
Available in a wide range of accessories
Internal gasket allows for drainage of moisture to building exterior
Easy installation flashing system
Quick and easy to install. New installation system. No brackets
Installation template provided to enable accurate cutting of roof opening
Set directly on the roof for providing better insulation, and supplied with a perimeter seal for a "warmer" roof boarding-skylight frame joint.

Deck Mounted Fixed Skylight FX

Where to buy? Contact

FX G3 with tempered-tempered glazing
- beautiful, hand selected, vacuum treated, lacquered timber frames
- double coated wood with ecological acrylic lacquer in natural colour
- suitable for roof pitches between 15-85°
FX G3
- 1.0 W/m2K glazing U-value 2.38 W/m2K U-Factor (skylight) 0.23 Solar Heat Gain Coefficient (SHGC) 0.025 [cfm/ft2] @ 1.57 psf, tested size: 24x70 Air Leakage [cfm/ft2] 0.45 Visible Transmittance (VT) 54 Condensation Resistance 730 [Pa] Water Penetration Resistance/Test Pressure 3520/3360 [Pa], tested size: 27x70 Design Pressure (positive/negative)
FX G31 with tempered-laminated glazing
- beautiful, hand selected, vacuum treated, lacquered timber frames
- double coated wood with ecological acrylic lacquer in natural colour
- suitable for roof pitches between 15-85°
FX G31
- 1.1 W/m2K glazing U-value 2.33 W/m2K U-Factor (skylight) 0.23 Solar Heat Gain Coefficient (SHGC) 0.025 [cfm/ft2] @ 1.57 psf, tested size: 24x70 Air Leakage [cfm/ft2] 0.43 Visible Transmittance (VT) 54 Condensation Resistance 730 [Pa] Water Penetration Resistance/Test Pressure

FX sizes

Size		24/27	24/38	24/55	32/38
Nominal frame size	mm	565 x 674	565 x 953	565 x 1372	768 x 953
Outside frame size	mm	623 x 699	623 x 978	623 x 1397	826 x 978

Size		32/46	32/55	48/27	48/46
Nominal frame size	mm	771 x 1153	771 x 1376	1177 x 678	1177 x 1157
Outside frame size	mm	826 x 1178	826 x 1397	1232 x 699	1232 x 1178
