Deck Mounted Venting Skylight FV

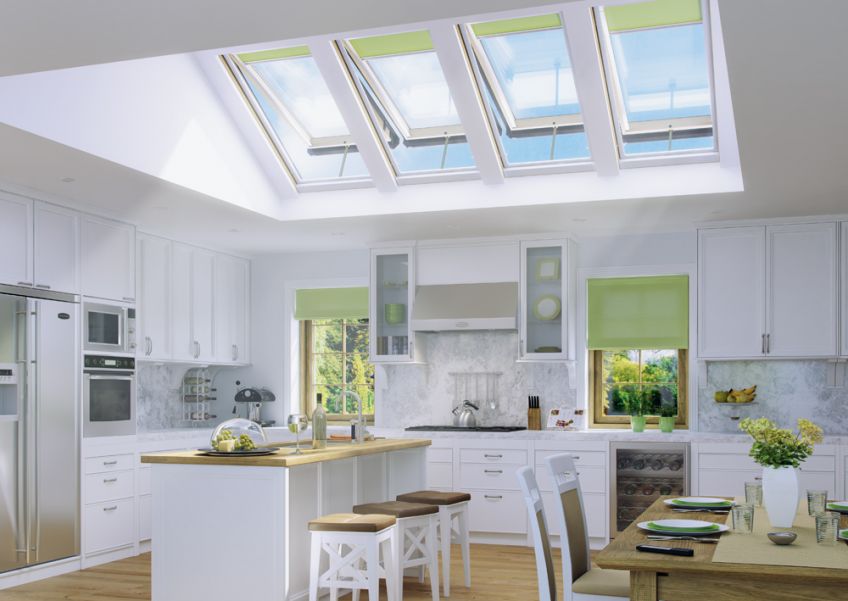

Fakro FV manual venting skylight provides light and fresh air into your home, creating a beautiful balance of the out doors inside your home. The FV skylight is ideal for places in your home, where there is no power. A rod enables you to open and close the skylight even when installed in high ceiling homes. A fly wire screen is standard and protects you against insects, so the skylight can be left open on those hot barmy nights leaving you with only fresh air getting in.



Features:

  • Easy and quick to install either DIY or by an installer
  • Triple seal system to ensure no leaks
  • Made from Nordic pine knot free timber
  • Double coated clear Acrylic lacquer in natural finish protection
  • Easy manual opening and closing winder system by hand or rod
  • Suitable for roofs pitches between 15° and 60°
  • Fits directly into your roof for superior insulation
  • Made from pressure treated pine
  • Wide range of accessories available

Deck Mounted Venting Skylight FV







  • FV G3


    • single chamber Solar Factor glazing unit 4HT – Tg16Ar – 4H
    • Highest quality pine woodbeautiful, hand selected, vacuum treated, lacquered timber frames
    • Wood painted twice with ecological acrylic lacquerdouble coated wood with ecological acrylic lacquer in natural colour
    • suitable for roof pitches 15-85°suitable for roof pitches between 15-85°
    FV G3
    • 0.18 (1.0) [BTU/h ft2F] (W/m2K) glazing U-value 0.44 (2.50) [BTU/h ft2F] (W/m2K) U-Factor (skylight) 0.21 Solar Heat Gain Coefficient (SHGC) 0.06 [cfm/ft2] @ 1.57 psf, tested size: 24x70 Air Leakage [cfm/ft2] 0.41 Visible Transmittance (VT) 54 Condensation Resistance 730 [Pa] Water Penetration Resistance/Test Pressure 3040/2400 [Pa], tested size: 27x70 Design Pressure (positive/negative)
  • FV G31


    • single chamber Solar Factor glazing unit 4HT– Tg14Ar – 33.2
    • Highest quality pine woodbeautiful, hand selected, vacuum treated, lacquered timber frames
    • Wood painted twice with ecological acrylic lacquerdouble coated wood with ecological acrylic lacquer in natural colour
    • suitable for roof pitches 15-85°suitable for roof pitches between 15-85°
    FV G31
    • 0.19 (1.1) [BTU/h ft2F] (W/m2K) glazing U-value 0.44 (2.50) [BTU/h ft2F] (W/m2K) U-Factor (skylight) 0.21 Solar Heat Gain Coefficient (SHGC) 0.06 [cfm/ft2] @ 1.57 psf, tested size: 24x70 Air Leakage [cfm/ft2] 0.39 Visible Transmittance (VT) 53 Condensation Resistance 730 [Pa] Water Penetration Resistance/Test Pressure

FV sizes



Size

24/27

24/38 24/55 32/38
Nominal frame size mm

565 x 674

565 x 953 565 x 1372 768 x 953
Outside frame size mm

623 x 699

623 x 978 623 x 1397

826 x 978



Size

  32/46 32/55 48/27 48/46
   Nominal frame size

mm

771 x 1153

771 x 1376

1177 x 678

1177 x 1157

Outside frame size

mm

826 x 1178

826 x 1397

1232 x 699

1232 x 1178
